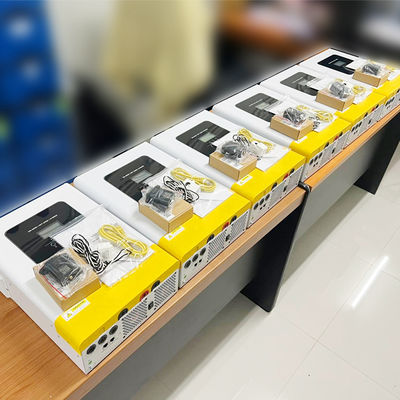

Hybrid Solar Inverter 5.5kW 48V Single Phase Pure Sine Wave with MPPT & WiFi Monitoring
| Nguồn gốc | Quảng Đông, Trung Quốc |
|---|---|
| Hàng hiệu | COENG |
| Chứng nhận | CE, IEC |
| Số mô hình | GM (PV60-500VDC) 6200-48PL |
| Tài liệu | GM Series 5.5 - 6.2KW.pdf |
| Số lượng đặt hàng tối thiểu | 1 |
| chi tiết đóng gói | Thùng carton, pallet |
| Thời gian giao hàng | 10-30 ngày làm việc |
| Điều khoản thanh toán | L/C, T/T, Liên minh phương Tây |
| Khả năng cung cấp | 2000 %/tháng |
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Kích cỡ | 450*300*130mm | Điện áp pin | 48V |
|---|---|---|---|
| Điện áp đầu vào | 230VAC | OEM | Chấp nhận OEM |
| Loại biến tần | Biến tần năng lượng mặt trời lai | Loại đầu ra | Sóng sin đơn, tinh khiết |
| Tổng trọng lượng | 10kg | ||
| Làm nổi bật | 5.5kW hybrid solar inverter,48V pure sine wave inverter,MPPT WiFi solar inverter |
||
Mô tả sản phẩm
| MODEL | GM5500-48PL | GM6200-48PL |
|---|---|---|
| Phase | 1-Phase In/1-Phase Out | 1-Phase In /1-Phase Out |
| Maximum PV input power | 5500W | 6500W |
| Parallel Function | YES,12 Units | YES,12 Units |
| Communication Port | RS232+RS485+ External CT Port | RS232+RS485+ External CT Port |
| Battery Voltage | 48VDC | 48VDC |
| Nominal Output Voltage | 220/230/240VAC | 220/230/240VAC |
| Dimension, D xW x H(mm) | 448*315*122 | 450x300x130 |
Product Features.
- Self-consumption and Feed-in to the grid
- Programmable multiple operation modes: Grid-tie ,off-grid and grid-tie with backup
- Backflow prevention viaexternalCTsensor and grid connection function
- Paralleloperation up to12 unitsin1phaseor 3phase
- Direct Plug WlFl Dongle Supported
- Output power factor 1.0
- High PVinput voltagerange 500Vdc Max
- Built-in MPPTsolar controller100/120A
- WiFiremote monitoring optiona
- Detachable dustcoverforharshenvironment
- User-adjustable charging current and voltage
- Programmable supply priority for PV, Battery or Grid
- Support multiple output priority:SBU/SUB/SUF/ZEC
- EQ function to optimize battery performance and extend lifecycle
Company Introduction
Shenzhen First Tech Co., Ltd was established in 2017, which is a one-stop solution provider of solar & battery energy storage system.
First Tech is engaged in the research, development, production, sales and service of the commercial and industrial energy storage system, home energy storage system, lithium-ion battery pack, solar hybrid inverter. solar optimizer etc.
First Tech is located in Shenzhen City, Guangdong Province, China, the factory have passed lS09001,1S014001,1S045001 managementsystem certification and the products have obtained TUV-CB, CEIEC,EMC MSDS, UN38.3, etc certificates. The products are exported toclients in such countries and regions as Europe, Africa, Middle East,North America,South America, Southeast Asia, etc.
Except providing it's own standard products, First Tech also welcome OEM & ODM orders, and will provide professional service and quality products with competitive prices to customers and market.
First Tech is committed to becoming a global leading solar & ESS solution provider to provide green energy and contribute to cleanerworld.
Enjoy New Life, Starting with First Tech!
